2.0 megapixel Sony starlight home security cam module for repairing/update CCTV system

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $26.60 / piece
Sale Price:  US $22.88 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

If you have one camera can not work,replace parts inside

If you have one bad quality camera,update the module inside

You can fix it,you can save money

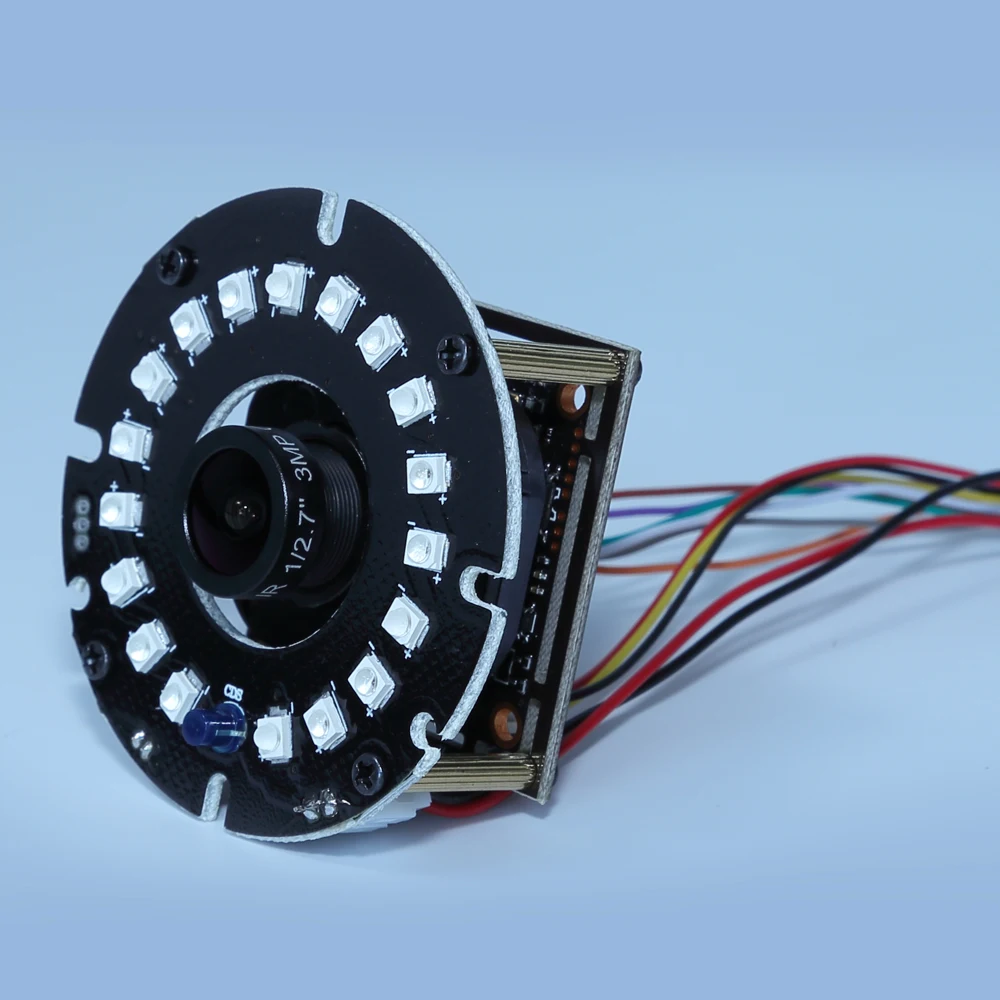

2.0 megapixel hybrid analog Sony STARVIS starlight camera module

For bullet camera

Features Sony STARVIS starlight CMOS Sensor IMX291LQR Approx.2.13M effective pixel 1/2.8”CMOS 2D digital noise reduction AHD/TVI/CVI/CVBS TV output Support OSD cable menu setting
Support UTC(up the coax), enter camera menu through OSD cable,UTC controller or coaxial control of DVR

Model GM-ALB18L
Camera
Image Sensor 1/2.8″ CMOS Sony STARVIS IMX291LQR
Effective Pixels 1945(H)×1097(V), 2.13MP
ISP(Image Signal Processor) FH8536E
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/1000 NTSC: 1/25~1/1000
Minimum Illumination 0.0001Lux
Image System PAL/NTSC
Video Output AHD/TVI/CVI/CVBS
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 30/50/60fps@720P
S/N Ratio More than 65dB
IR Distance Up to 80m
IR On/Off Control Auto
IR LEDs Led 18pcs
Lens
Lens Type Board lens
Mount Type Board-in
Focal Length 3.6/6mm
Aperture F1.4
Angle of View 100°(3.6mm)
Focus Control Manual
Function
OSD Menu Yes
Function Control OSD ( COC Control )
Brightness 1-20
Exposure Mode GLOB/CENTER/BLC/FLC
Day & Night EXT/W&B/Color
White Balance Manual
Contrast Manual
Sharpness Manual
Color Gain Manual
2D digital noise reduction Manual
Video Standard PAL/NTSC
HD Format AHD/TVI/CVI/CVBS
Image Size 1080P/720P
D-WDR Open/Auto/Close
Language Multi-language
Reset Support

Parts included

Very important! To make sure this camera module is applicable for your camera casing,before you place order please open your camera casing and check the structure and parameter of your bullet camera casing. This camera module set is applicable for the kind of casing as bellow: Your bullet camera maybe is with 36ps Led Camera casing body is assembled with 2 parts The casing inside maybe have 4 screw holes or 2 screw holes Thes distance and depth of screw holes is as bellow:

Some bullet camera casing’s structure is different as bellow,it is not applicable for our standard module,but if customer can offer some parameters of camera casing,maybe we can give the right size of copper pillar.

So before you place order please send email to our customer service staff.

How fix it? Replace cable Screw up Make sure each color cable is in the right position(same as picture) Install copper pillar Connect cable with mainboard and IR Led Install the module in camera casing Fix the IR anti-interference ring Produt show HD Lens 3.6/6mm lens real 3.0 Megepixel 100°angle of view(3.6mm) Image CMOS Sensor Sony STARVIS lowlight CMOS Sensor IMX291LQR Approx.2.13M effective pixel 1/2.8”CMOS Outstanding visibility under the starlight High definition high sensitivity in the near infrared region ISP(Image Signal Processor) FH8536E High Performance ISP High performance ISP with 2D digital noise reduction module IR CUT Filter Good quality IR CUT filter used in the camera Highly transparent optical glass filter Metal and ABS casing,working stable,better for dissipating heat Microcrystalline IR led Low consumption and high brightness Angle mixed ,less dark corner area,see more details OSD cable Cable connector Copper pillars

Screws

IR anti-interference ring

TV Transfer mode switching

There are 3 ways to switch TV output of camera

Switch by OSD cable

1,Connect camera with power and DVR;

2,Press The Setting Button About 3 Seconds To:

UP:AHD

R:CVBS

L:TVI

DOWN:CVI

Switch by AHD DVR

Enter camera menu through OSD cable,enter Video setting/Transfer mode

Switch by AHD DVR through UTC function of DVR

1,Start the Coaxial Control function in DVR

2,Click Setting Button to enter MAIN MENU

3,Click UP&DOWN direction key to select VIDEO SETTING/TRANSFER MODE

4,Click R&L direction key to select transfer mode
