The lower distortion, better control and resolution
Single differential input, single-ended voltage amplifier stage, three-stage inverted Darlington output.
The output stage uses High-power tube Sanken 2SA1295,2SC3264.
PHILIP S KEC transistor, ST, EVOX producing CBB capacitor.KEMET, TDK monolithic capacitors.
Supply Voltage: + -15V to + – 45V
Output Power: 100W8R (+ – 42V)
Voltage Gain GAIN: 34times
Input Sensitivity: 1.2V100W RMS 8 Europe
SNR: More than 98DB
Distortion: <0.009 THD 1K HZ 10W
Output Stage quiescent current per channel IQ Approximately 30MA
PCB Dimension: 76mm * 73mm

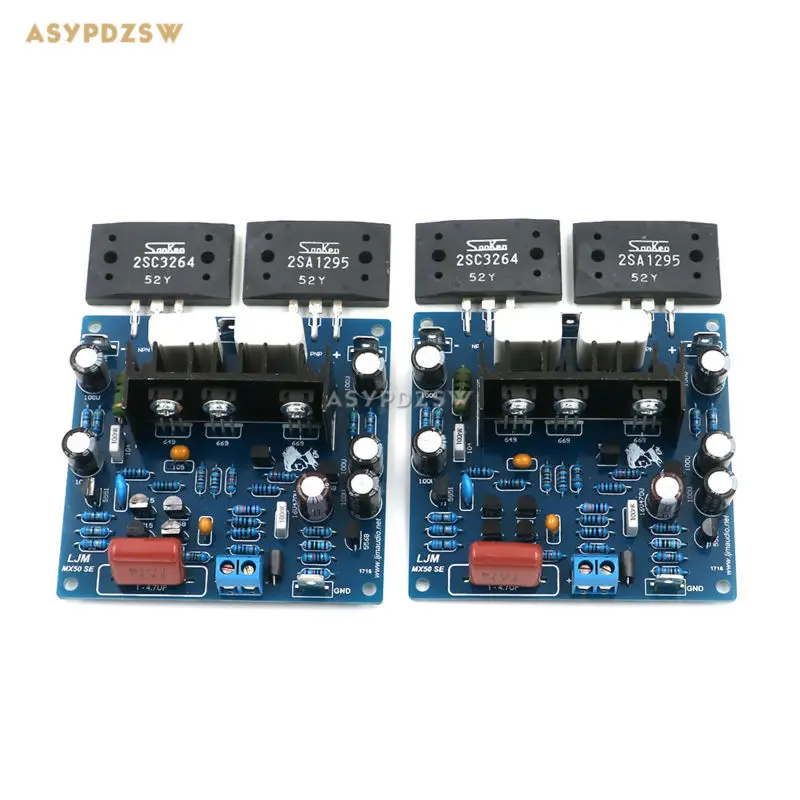

MX50 SE power amp board X2
Note:This is a finished board test OK.
