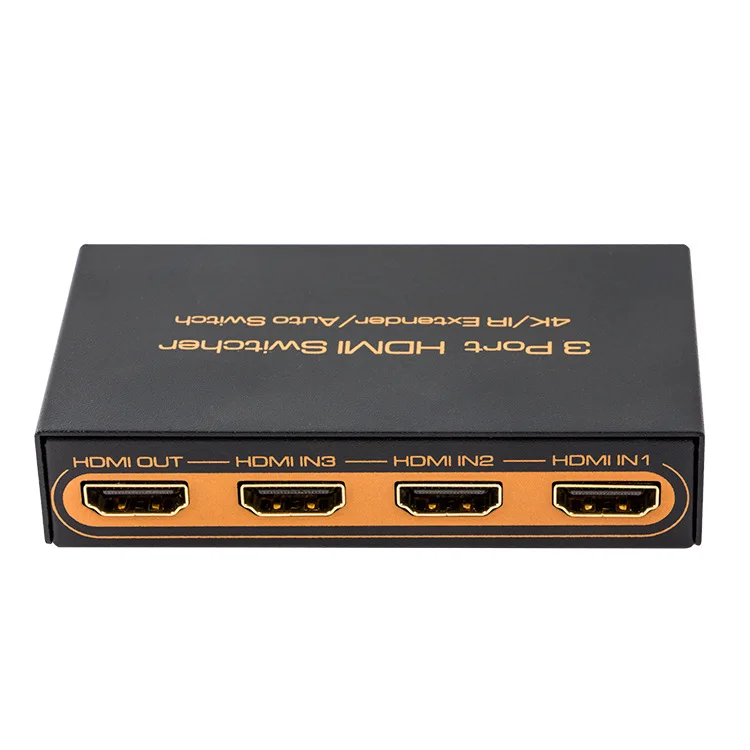

3 Port HDMI Switcher

The device can switch 3 HDMI Inputs to one HDMI Output, It can easily switch three routes of HD Source to any one HD display or projector.

INTRODUCITON

Feature:

lThree HDMI Inputs switch to one HDMI Output

lSupport 4K

lSupport Remote control and HDMI auto switch.

lLED Status Light shows clearly the working state.

lHDMI Input and Output distance can be up to 6m using the AWG26 standard HDMI Cable.

lEasy-Install

Accessories Content:

1、Manual

2、Remote

3、IR Extender Cable

Physical Connect Port:

Picture 1.0 Front Panel Showing

A:Standby and Start Button

B:Standby Status LED, when light goes bright, the device goes to Standby State.

C:HDMI Input Channel Switch Button

D:HDMI Input Channel Three LED Status Light

E:HDMI Input Channel Two LED Status Light

F:HDMI Input Channel One LED Status Light

G:HDMI Input channel audio switch LED Status Light, when Light goes bright, Auto Switch function on.

H:IR Extender cable Input port.

Picture 1.1 Rear Panel Showing

A: HDMI Output Port

B:HDMI Input One, Two, Three Port

Remote Button Function Showing

Standby and Start Button, when device is working normally, it will go to Standby status if you press the button and also the Standby Led Status Light will go bright; when press the button again, the device will back to normal working status and the Standby LED Light at device will also off.

HDMI Input Channel Switch Button. When you press the “IN1” Button, the device will goes to the matched input 1 channel.

Auto: HDMI Input Channel Auto Switch Function On/Off Button, when you press the button, HDMI Input channel Auto function on and the Auto LED Light at device will go bright; When press second time, Auto function will off and Auto LED Light will off. When Auto Function turns on, the device will jumps to the new connected input source. Pls make sure that your want input source has been started.

* Pls take out the film at the rear of the remote before you use. Pls insert the film to remote rear if you do not use the remote for long time.

Connection and Operation:

  1. 1. To use one HDMI Cable to connect the HD Source with the HDMI Input port of device.
  2. 2. To use HDMI Cable to connect the HDMI Output port of device with the Display.
  3. 3. To pressbutton“” at remote or the button“”at device to turn on the device and turn off the device.
  4. 4. When you press the “AUTO” button, HDMI Input channel Auto function on and the Auto LED Light at device will go bright. When press second time or other button, Auto function will off and Auto LED Light will off.
  5. 5. Note: This device gets the power from the HDMI Source and HDMI Sink. Some special HD Sources may have very small working current, so it may can not supply enough power to the device 3×1,if meet that situation, pls connect more than one HD Sources to keep enough power to the device.

Spec: HDSW0013M1

HDMI Resolution……24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30/2160P

Deep Color …………24/30/36bit/1080P/1080i/720p/576p/576i/480P/480i,24bit//2160P

HDMI In/Out Supported Audio Format………………………………………………………… DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Channel Max Bandwidth………………………………………………………225MHz

Input / Output DDC signal…………………………………………………….… 5Vp-p(TTL)

HDMI Input Cable Length……………….…………..…≤6m AWG26 HDMI standard cable

HDMI Output Cable Length……………………..….….≤6m AWG26 HDMI standard cable

Max Working Current…………………………………..……………………..…………350mA

Working Temperature Range………………………………………..……………(-0 to +40℃)

Working Humidity Range……………………….……..…5 to 85%RH(No Condensation)

Size………………………………………………………..………………95.2×52.9×20.8 (mm)

Weight……………………………………………………….…………..……………………282g
