- analog: 16*4M;
- hybrid: 8*4M(analog)+8*4M(network);
- only Network:8*3M;4*5M

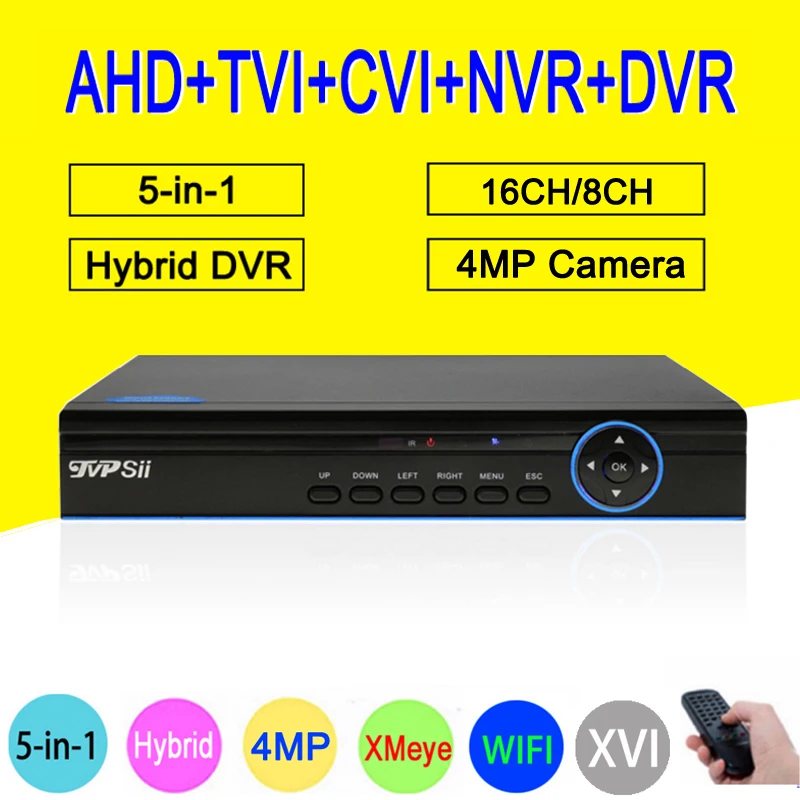

Q: What is 4MP AHD Hybrid DVR?
A: 4MP HD Coaxial DVR is highest format HD DVR; the quality is best for all HD DVR;it support 4MP,3MP,2MP,1MP HD camera(AHD,TVI,CVI,IP),960H,D1 and IP Cmera(2mp/3mp/5mp) .
Q: What is 5-in-1 function? A: 5-in-1 means that support AHD(AHD Camera),TVI(TVI Camera),CVI(CVI Camera),DVR(analog) and NVR(OnvifIP Camera).
Q: What is XVI function?
A: XVI also known as AXVI (Full name is Advanced XM Video Interface), it is a coaxial transmission video format newest developed by XM. Products with XVI are superior to competitors not only because of its compatibility with AHD,TVI protocols, but also its unique feature.
16CH Operation interface:
Languages and Wifi:
|System||Main processor processor||Hi3531A|
|Monitor quality||VGA(1080P at most);HDMI(4K at most)|
|Encode ability||16*4M@8fps(AHD)/ 16*3M@10fps(AHD)/16*1080P @15fps (5 in 1) / 16*720P(5 in 1)|
|Decode ability||8*4M@8fps(AHD)/ 8*3M@10fps(AHD)/8*1080P @15fps (5 in 1) / 8*720P(5 in 1)|
|Multi-mode input|| analog: 16*4M;
|Motion Detection||Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)|
|Record & playback||Record mode||manual>alarm>motion detection>timing|
|Local Playback||8ch(local input mode)|
|Search mode||Search by time, calendar, event, channel|
|Storage & backup||Video storage||HDD, network|
|Backup mode||Network, USBhard disk, USB burner, SATA burner|
|External Interface||Video output||1ch VGA, 1ch HDMI|
|Audio I/O||2(Can be extended to 6ch)/1|
|Alarm I/O||0(Can be extended to 4ch)/0(Can be extended to 1ch)|
|Network interface||RJ45 10M/100M self-adaption|
|PTZ control||1*RS485, Support kinds of PTZ protocols|
|USB||2* USB 2.0 ports|
|HDD||1*SATA ports (Max 8TB/per)|
|Wireless||3G, WIFI (extend via USB)|
|Power Consumption||<15W (without HDD)|
|Working environment||Temperature:0 degree – +55 degree Humidity:10%-90%,Atm:86kpa-106kpa|
12V 2A Power adpater 16CH AHD Hybrid DVR will not work with 2TB,3TB or 4TB hard disk ,so must use 12V 3A power adpater!!!(many seller use 12V 2A for cutting cost,so be careful)
1.Russian Federation: 7-22 days By RETS-Express
2.Brazil: 15-30 days E-Packet
3.East Asia (Japan and Korea): 7-15 days EMS or E-Packet
4.Southeast Asia: 7-15 days E-packet or Singapore Post
5.Central Asia and South Asia: 7-20days China post
6.West Asia (Israel): E-Packet; Netherlands Post; Swiss Post, about 7-15 days
7.United States and Canada: 7-15 days E-Packet
8.Europe: E-Packet; Netherlands Post; Swiss Post, about 7-15 days
9.Oceania (Australia and New Zealand): 7-15 days E-Packet
10.DHL (America and Europe):3-10days;SPSR(Russian Federation):7-18days
we only spent two days (48 hours) for sent parcel , have tracking number and tracking number information,Thanks!
if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer,Thanks!
Due to different custom policy of many country, If want avoid high custom tax, we can declare a low price for goods with your request,we often delcare $18 for this hybrid dvr,Thanks!
If you want to use WIFI function , please click the following button to buy USB WIFI Antenna Module,Thanks!
Q: it always cause problems in trade between countries, for example , bad weather for delay, custom problem , post worker broken it, and so on
A:if you have any problem, please frist contact us, not easy input dispute or give me a bad feedback, we will try our best to help you reslove problem ,We welcome those friendly customers,Thanks!
