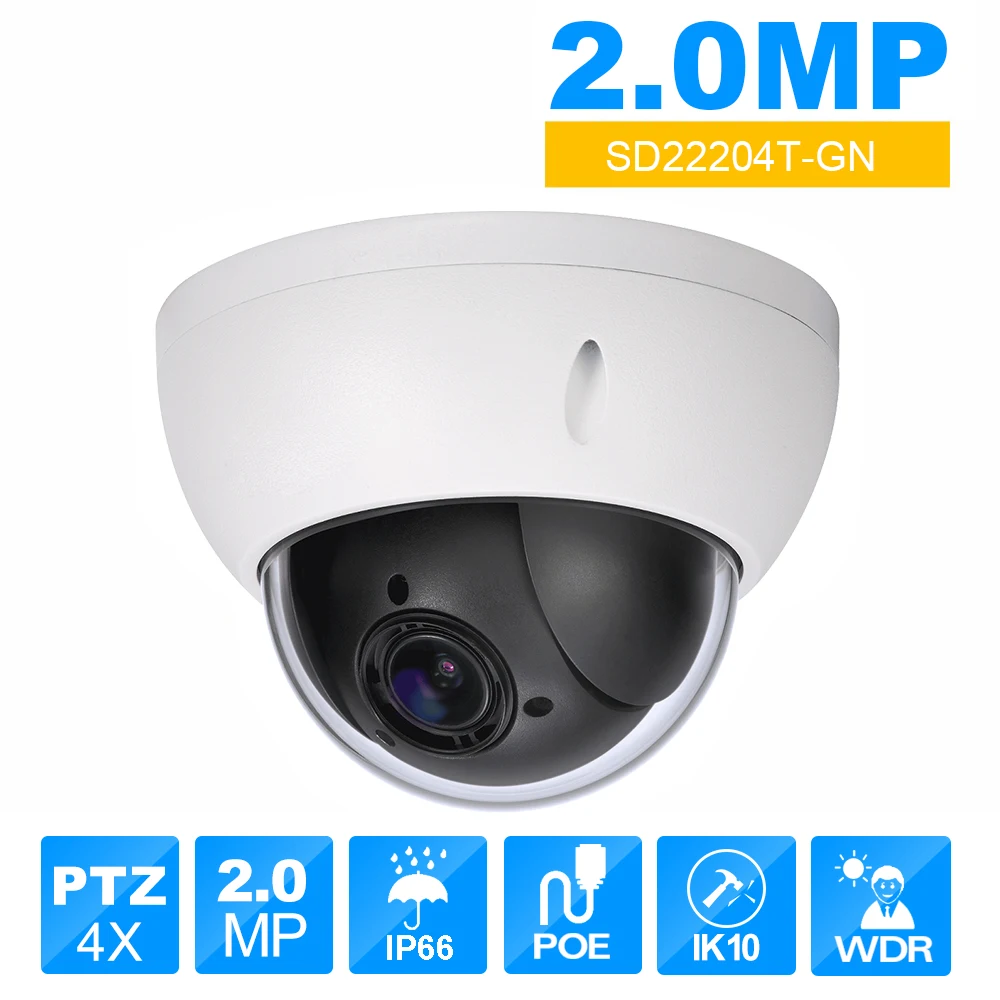

dahua PTZ DH-SD22204T-GN CCTV IP camera 2 Megapixel Full HD Network Mini PTZ Dome 4x optical zoom POE Camera SD22204T-GN

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $126.99 / piece
Sale Price:  US $120.64 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

SD22204T-GN

2MP 4x PTZ Network Camera

> 1/2.7” 2Megapixel CMOS
> Powerful 4x optical zoom
> Support Triple-streams encoding
> WDR, Day/Night(ICR), Ultra DNR
> Max. 25/30fps@ 1080P, 25/30/50/60fps@ 720P
> IVS
> Support PoE
> Max 100°/s pan speed
> IP66, IK10

Camera

Image Sensor

1/2.7” CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

256M/128M

Electronic Shutter Speed

1/1s~1/30,000s

Scanning System

Progressive

Minimum Illumination

Color: 0.05Lux@ F1.6; B/W: 0.005Lux@ F1.6

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Focal Length

2.7mm~11mm

Max. Aperture

F1.6

Angle of View

H: 112.5° ~ 30°

Optical Zoom

4x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

120m(394ft)

48m(157ft)

24m(79ft)

12m(39ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 355°; Tilt: 0° ~ 90°

Manual Control Speed

Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s

Preset Speed

Pan: 100° /s; Tilt: 60° /s

Presets

300

PTZ Mode

8 Tour, Auto Pan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/Tour if there is no command in the specified period

Protocol

DH-SD

Intelligence

Auto Tracking

N/A

IVS

Tripwire, Intrusion,Abandoned/Missing, Face Detection

Video

Compression

H.264+/H.264 / MJPEG

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/720P(1280×720)/

D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/D1 (1 ~ 25/30fps), 720P(1~50/60fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 720P/D1/CIF (1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto,ATW,Indoor,Outdoor,Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detetion

Support

Region of Interest

Support

Electronic Image

Stabilization (EIS)

N/A

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Wi-Fi

N/A

Protocol

IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm I/O

N/A

Electrical

Power Supply

DC 12V/1.5A, PoE(802.3af)

Power Consumption

10W

Environmental

Operating Conditions

-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection

IP66

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ122 (mm) x 89 (mm)

Net Weight

0.66kg(1.46lb)

Gross Weight

0.71kg(1.57lb)
