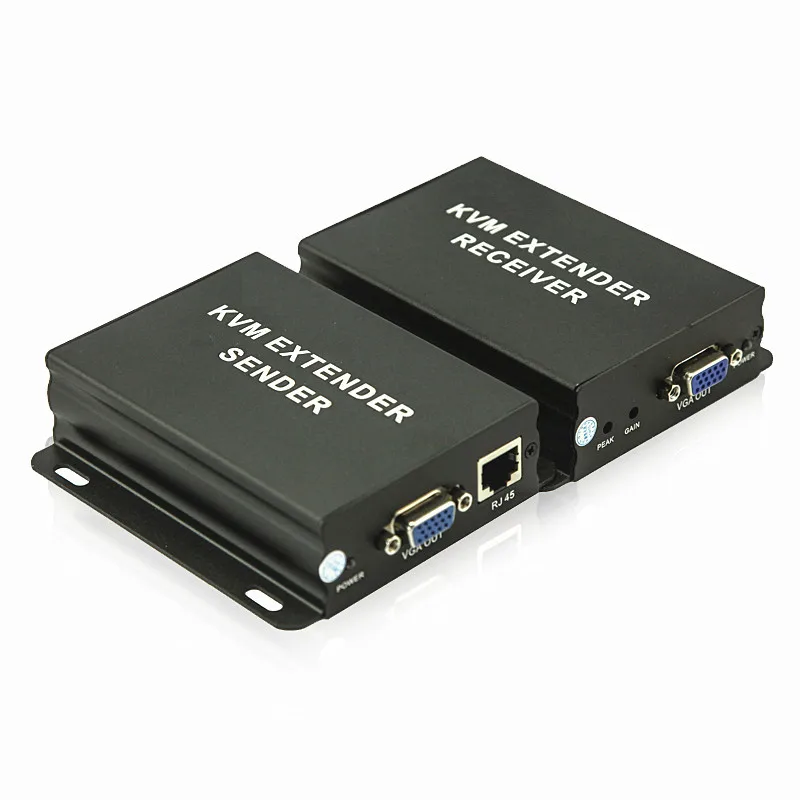

HighTek HK-KE300 KVM Extender with CAT5E 300m & KVM Amplifier & KVM Repeater details:
1. It can extend the power switch of the computer,keyboard,mouse and video port max of 300m
2. It provides a KVM port on the Sender
3. It can be switched from remote monitor to local monitor or switched from local monitor to remote monitor by the keystroke on the Sender or SCROLL on the local keyboard
4. Use the single cable (CAT5,CAT5E,CAT6),the cost is inexpensive
5. It supports (PS/2 port) keyboard and mouse, it supports (VGA) port monitor
6. It can remove and insert the local and remote keyboard and mouse
7. Power on computer use the emulational keyboard and mouse
8. It supports DOS,Windows,NT,Linux system
9. It does not need a driver,it is simple to install
10. The remote keyboard and mouse display is in real-time
11. The anti-jamming is strong
12. Cascade operation for increasing the distance
1. input connector: HD15PIN(VGA)
2. output connector: HD15PIN(VGA)
3. local output: HD15PIN(VGA)
4. bandwidth: 300MHz(-3 dB)
0-130MHz +6dB~-0.8 dB
5. input level range:0.5-2.0Vp-p
6. input level error: less than 3mV
7. input impedance: 75Ω
8. output impedance: 75Ω
9. echo ullage: -30dB @ 5MHz
10. Max DC compensation:±5mV-0
11. SNR: 60dB
12. Connector standard: HDB15,Mini-DIN6,RJ45
13. Video standard: VGA,SVGA,XGA,SXGA,UXGA,LCD
14. Cable standard: CAT5,CAT5E,CAT6 UTP
Q1: Can you provide OEM service?
Yes, we work on OEM orders.which means design, packing solution,etc will depend on your requests; and your logo will be customized on our products.
Q2: What information should i let you know if i want to get a quotation?
1.Which products are your need?
Q3: WHY US?
1.The only recommended brand of interface converter by CCTV;
2.Established in 2000, there are 8 branch companies all over China;
3.More than 20 years’ manufacturing in communication filed and more than 15-year customization experience;
4.With professional management, R&D, manufacturing, QC and service team, we are always ready to provide perfect products and service for you;
5.Always the selection of Telefonaktiebolaget LM Ericsson, Huawei, Wachovia Corporation, Foxconn, CNPC, Sinopec and China Mobile since the first cooperation between us.
Welcome to contact us!
Address: 7/F,Bldg.5,Wuwu Science & Technology Park,Longhua District,Shenzhen,China
