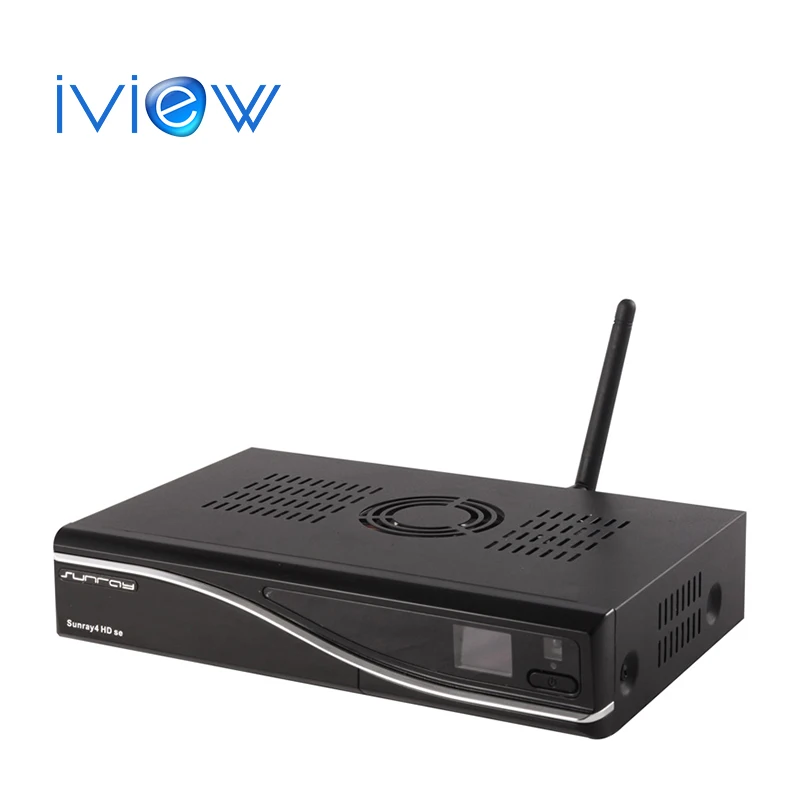

In Stock Factory latest version dm Sunray SR4 +sim2.10/a8p DVB-S2 satellite TV Receiver enigma 2 Linux

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $133.99 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

In Stock Factory latest version dm Sunray SR4 +sim2.10/a8p DVB-S2 satellite TV Receiver enigma 2 Linux

– 400 MHz processor

– SIM2.10 card
– BL 84 and GP510
– 6cm quiet fan and HDMI connector

– 2 Logos for choose: NewDVB/Sunray , please leave a message which one you prefer, or we will send depend on stock.

– supports the Linux TV API
– 10/100MBit compatible Ethernet Interface
– HDMI connector
– plug & play Tuner
– colored OLED display
– plug & play slot for an internal 2,5″ SATA hard disk

• 400 MHz MIPS Processor
• Enigma 2, Linux Operating System
• colored OLED – Display
• MPEG-2 / H.264 Hardware decoding
• Tuner: DVB-S, optional: DVB-C, DVB-T
• Tuner Module, Plug&Play
• 2 x Smartcard-Reader (Dreamcrypt CA)
• Mini USB for Service and software update
• 10/100Mbit Ethernet Interface
• 1 x Scart (RGB, FBAS or S-Video)
• HDMI
• 2 x USB 2.0 (e.g keyboard)
• analog modem
• S/PDIF Interface for digital bit stream out (AC-3)
• 64 MByte Flash, 256 MByte RAM
• SATA
– for internal HDD 2,5“
• unlimited channel lists for TV/Radio
• channel-change time < 1 second
• automatic service scan
• directly bouquet-lists
• EPG (electronic program guide)
• multiple LNB-Switching control (supports DiSEqC)
• OSD in many languages and skin-support
• Videotext Decoder
• extern 12V power supply

800HD se Technical Data

DBS-Tuner mit DVB-S2:
Frequency Range 950-2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 – 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)

Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.264
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink

Ausgang Video:
Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:
Output: FBAS, RGB, S-Video

Mini USB service connector:
Function: Update of Firmware

Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware

Analoge modem:
analoge modem for Internet connection

SATA Interface:
for internal 2.5″ HDD

USB: 2 x USB 2.0

LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA

Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)

Power consumption: < 15W at 12V

External PSU
Input: 110-240V AC / 50-60Hz / 0,6A
Output: 12V = / 3,0A

Physical specification:
Ambient Temperature +15°C…+35°C
Humidity < 80%
Size (W x D x H): 225 mm x 145 mm x 52 mm
Weight: 940 g without HDD
