“Any dispute / Direct negative feedback” before contact means “Buyer bad ” !! And not welcome such buyer !! Please go away !! ( Because business is cooperation ,not fight each other ) .
If protection time is running over ,please contact to extend time ,
if any problem found ,please contact to solve by a friendly way .
1. Motion detection in this camera does not mean camera will stop recording if no movement before camera .
2. Please kindly read our description about “motion detection” comes below !! Many peopel misunderstood it !!! if you have question please contact.
3. Economic Camera, if you have high request about video quality ,please do not buy !!!
Sample video is available for watch above .

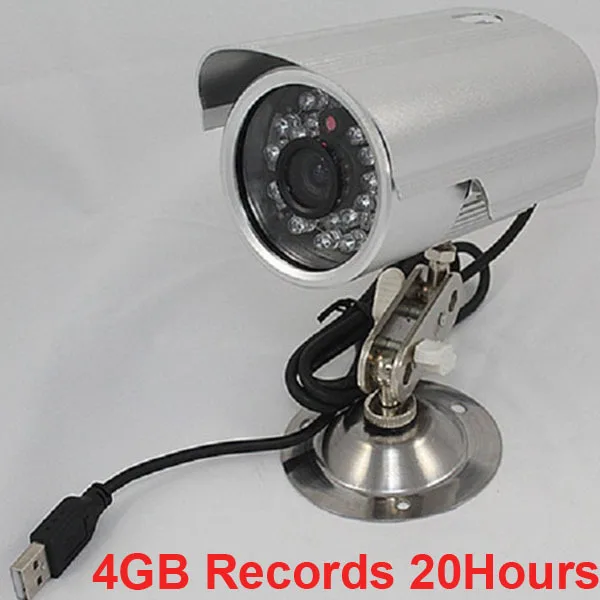

Selling point of product :
1. DIY CCTV , waterproof ,
2. PIR Camera ;
3. Star Recording as long as it connected to power .
4. 21pcs IR LED up to 20000Hours for life .
5. Support motion detection with cycled recording ;
5. Easy to install ,just need to provide power of 5V , no need to buy hundreds of cables for it and fix on wall .
6. Economic and substantial ,
7. Support USP power supply , the file can be saved even the power is cut off ;
8. Can replay directly,no need software to compress JPG picture to video .
9. 4GB memory supports to record about 20 hours at 640X480 ( under dummy mode ). If ou set to use CIF,it can support more longer time .
10. TF card not included. .
CD in above picture now not inlcuded in package . Any files or software need ,please download them from the sheet included in package. Processor : Micro-processor ARM9 32-bit microprocessor core
Waterproof : Support to record outdoor .
Operating System Embedded System
Signal :Digital Signal
Resolution : VAG (640 * 480) / CIF 352X288
Minimum illumination : 0.1lux/f1.2
White Balance Backlight White Balance, Auto Back Light Compensation
all-weather monitoring function (with 30 frames per second for video recording )
30 million-pixel high-definition camera 1 / 4 “CMOS image sensor
Support real time and time adjusting function
Memory card slot : support up to 1-32GB
21 pcs of IR LED with distanct 5-7 meters around
System Configuration microsoft win98 SE/ME/2000/XP/vista/win7 other systems
Suitable for family occasions, shops, supermarkets, schools, offices, public facilities, driving records, etc.
Exterior plastic housing
power supply DC5v/1A
Operating temperature of minus 10 degrees -60 degrees
Operating humidity 95% RH
Weight 175 g
1x power supply 1x standard
the cable in picture is USB cable , for connecting to power or PC . Instructions:
motion detection ( you can simply understand it as that when it detects movement,video size bigger ,if not detects movement ,video size smaller. It records without stops ) :
Product will enter into auto recording VGA (640 * 480) after power is connected . Supports CIF 352X288 too . motion detection ,means if a scene is changed before the camera ,the camera will start a normal video recording mode . And if the scene keeps unchanged or nobody moved before camera for 2 minutes , the camera will turn back to dummy mode automatically . !!!! the motion detection can not be disable. as long as camera is powered ,it will record with mnotion detection . P.S.:
1. Normal recording means the record with poeple moved before camera , the vedio size is about 10MB/ 100 seconds ( 640X480);
2. Dummy record mode means that when no body moved or no scene changing before camera , the camera will record the video in a very small size , it is about 480MB / 5 hours ( under 640X480 ), according to this data , so we see it can support to record 20 hours for 4GB card . Also it may has a little difference for your own test, please accept if any difference .
3. The camera will record video continuingly without any stop and save video 30 minutes every time .
Records and memory informations ( result of motion detection function ):
1. With move before camera , 4 minutes video takes memory 40.3MB :
2. Short time recording without move before camera , 30 minutes video takes memory 152MB only :
3. Long time recording without movement before camera ,7.5hours records takes memory 1.41GB only :
When connected to a computer, the display will be as a removable disk, you can find any time any image playback. After camera is connected into computer, double click on removable disk, enter the \ VIDEO \ RECORD video , then select the appropriate folder with the appropriate clip to play . Important note : Now many customers meet problem when play recordings ,they said it only has sound ,but dont have any video . The problem is that the player in PC does not support to play the recordings ,at least please dont use Windows Media Player to play it ,please try other popuplar player to play the records.
The camera record in night as below :
With light on in room
Without light at all in full darkness ,but with IR LED on ,and distance is 5 m.
Same function as below :
4GB,PIR DVR,DIY PIR video record camera,intellgent/Smart SD card camera,IR night vision,motion activated,security DVR
