Default Specifications: Main Power +/-70V Auxiliary Voltage +/-12V/0.3A Auxiliary Voltage +12V/0.3A
Custom specifications: +10V to +80V, +/-10V to +/-80V output voltage can be customized
NOTE: The output voltage can be customized according to the buyer’s requirements. If you need to customize the voltage, please contact us.
This product uses LLC resonant half-bridge topology, with high conversion efficiency, interference, dynamic response speed, the output voltage stability, and integrated over-current, overvoltage, overheating, output short circuit protection, is the high-end amplifier products Best match. Can be used for 200-800W power amplifier, 25 degrees continuous heating power of 500W, peak power up to 1200W.
NOTE: Due to the different specifications of the order, received in kind and pictures may be different, please refer to the actual items.

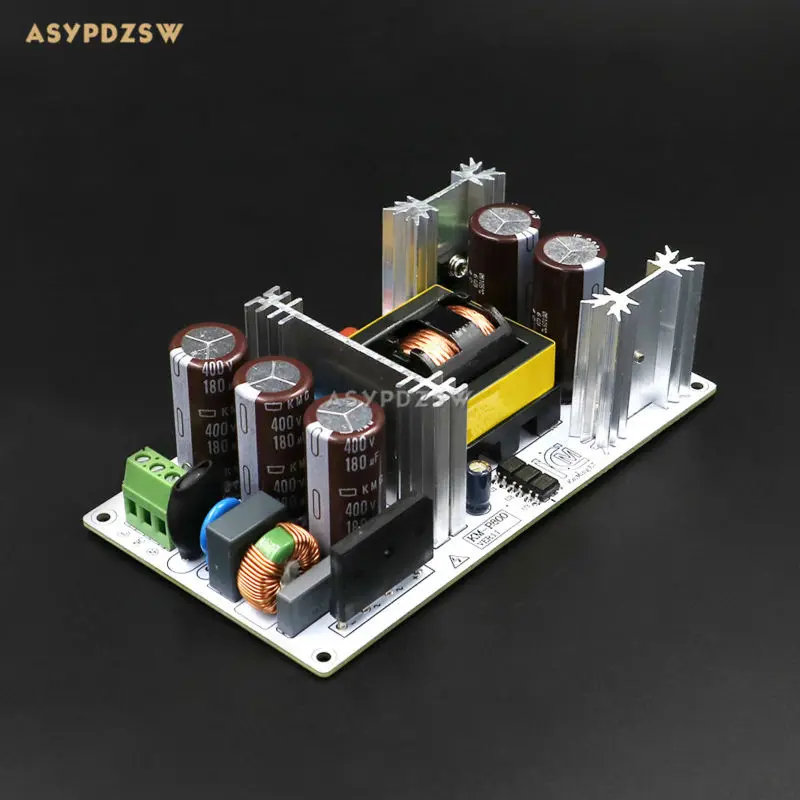

Product Type: KM-P800
Input voltage: AC 200-240V
Output voltage: main +/-70V; auxiliary +/-12V; independent 12V (output voltage can be customized other specifications)
(AC 220V input, 400W load; the main no-load voltage is about 10% of the positive, connected to the 20W load after the load is not more than 10% Voltage stabilized at nominal)
Output current: +/-70V/5.5A; +/-12V/0.5A; 12V/0.5A
Continuous power: 400W-500W (25 Degrees Celsius ambient temperature can work continuously)
Maximum power: 800W (25 Degrees Celsius ambient temperature can work for about 5 minutes)
Instantaneous power: 1200W (dynamic signal generated when the impact of power, less than 100 hours of time)
Conversion efficiency: Max 95%
Use of the environment: -10 — 40 Degrees Celsius
Storage temperature: -30 — 85 Degrees Celsius
Size: 80mm * 145mm * 45mm
