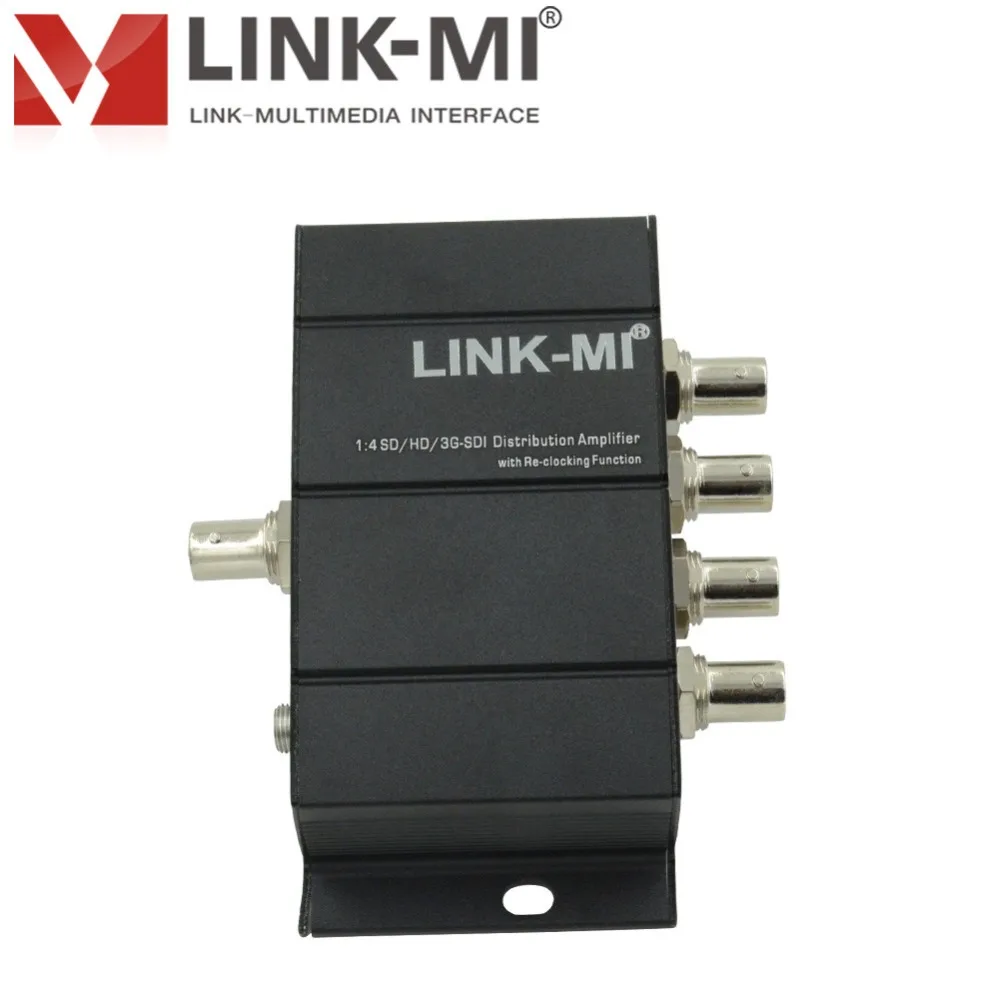

LINK-MI LM-SS14 1:4 HD SDI Repeater Distribution Amplifier 1×4 SD/HD/3G SDI Splitter Video Audio Split 1 in 4 out Up to 1080p@60

60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $199.50 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

LINK-MI LM-SS14 1:4 HD SDI Repeater Distribution Amplifier 1×4 SD/HD/3G SDI Splitter Video Audio Split 1 in 4 out Up to 1080p@60

Model No.: LM-SS14

Product Type: 1:4 HD SDI Repeater & Distribution Amplifier

Keyword: 1:4 HD SDI Repeater & Distribution Amplifier

Introduction

LINK-MI LM-SS14 1:4 HD SDI Repeater & Distribution Amplifier is a 1 to 4 repeater and distribution amplifier with Re-clocking function. It receive one SDI input and perfectly duplicates it. Then it re-transmits two SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI or HD-SDI video source to two 3G-SDI or HD-SDI or SD-SDI display at the same time and takes one input then re-clocks and equalizes the signal and distributes it to two identical outputs.

Features

1. SDI Standard:3G-SDI, HD-SDI, SD-SDI

2. Data Rates: 270Mbps/1.485 Gbps/2.97Gbps

3. Signal Type: SMPTE 292M, SMPTE 259M,SMPTE424M

4. Two separately buffered outputs

5. Cable equalization (Beldon 1694A) retiming and signal

6. Re-clocking function capability – unlimited repeater connection

7. Dual color LED indication of nput locik and rate

8. Pass all ancillary data

9. 5V~24V DC

Specification

Model

LM-SS14

Re-clocking Function

Yes

SDI Standards

3G-SDI, SD-SDI, HD-SDI

HD/SD-SDI Detection

Auto

Data Rates

270 / 1483 / 1485 /2970Mbps

V ideo Support

SD: 525i @ 59.94Hz, 625i @ 50Hz

HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 59.94Hz / 60Hz

1080i @ 50Hz / 59.94Hz / 60Hz

1080p @ 23.98Hz/24Hz/25Hz/29.97Hz/30Hz

3G:1080p @ 50Hz / 59.94Hz / 60Hz

SDI Signal Type

SMPTE-292M, SMPTE-259M, SMPTE-424M

Output Impedance

75 ohms

Max. Distance

Belden 1694A

SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft

Audio Support

Yes

Input

1x BNC [SDI]

Output

4x BNC [SDI]

BNC Connector

75 ohms inter-locked socket

Power Consumption

2~4 Watts

Relative Humidity

20~90% RH (no condensation)

Dimension

92*120*36

Weight

0.65KG

Dimension Diagram Panel Description

Product Overviews

Connection Diagram Packing and Shipping
