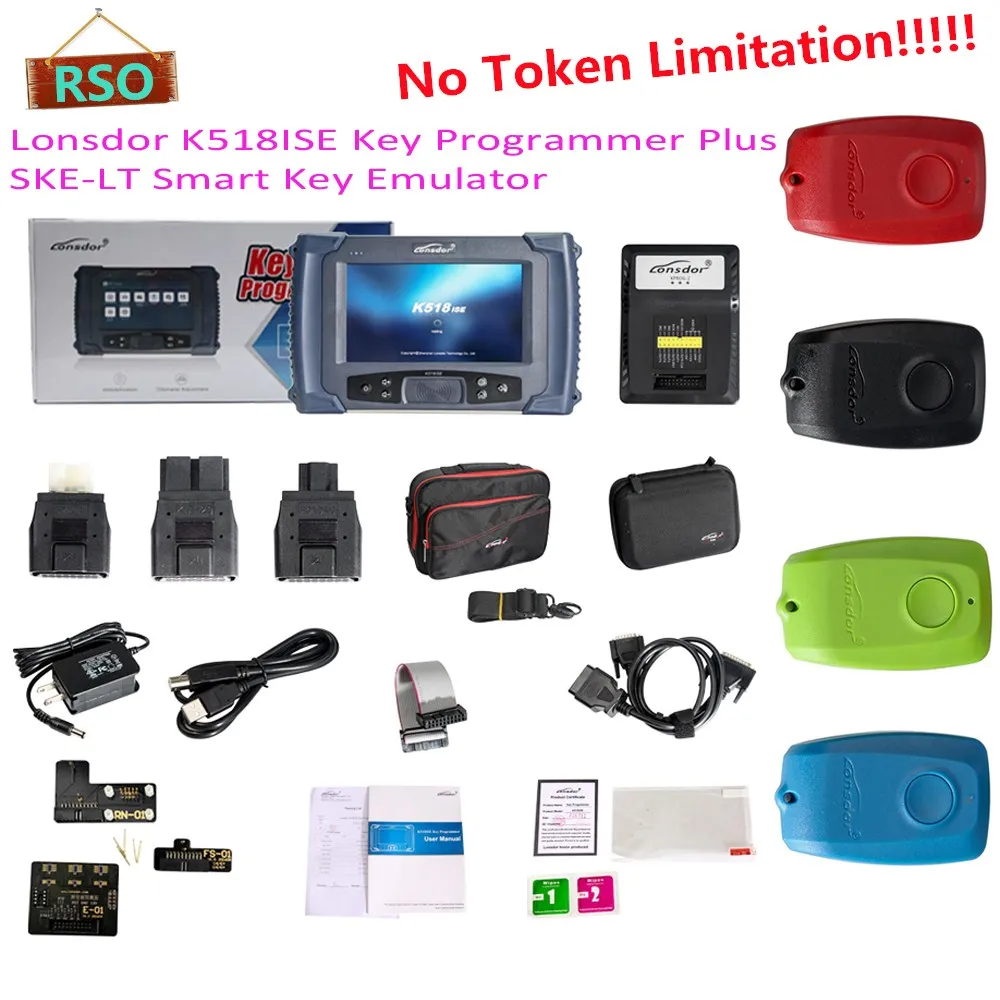

Newest lonsdor k518ise Auto Key Programmer With Odometer Adjustment For All Makes K518 ISE Free For BM/W FEM Key Programming
Lonsdor K518ISE is an universal key programmer for all makes from Europe, America, Asia and China, also it can perform odometer adjustment for some makes. Lonsdor k518 Key Progrmmer are built-in Volkswagen 4th 5th adapter & RFID transponder reader / writer, program For Toyot/a/Lexus smart key all key lost via OBD and free For BM/W FEM key programming (for all keys lost, enter 32-bit ISN code).
If you want to know detailed support car list please contact us
Please know this devices not support all cars models！
If you want to know whether can work with specified car model please ask us before order!! thanks^_^
2017 Newest Lonsdor K518ISE Key Programmer with Odometer Adjustment for All Makes
Lonsdor K518ISE, the English version of Lonsdor K518, is an universal key programmer for all makes from Europe, America, Asia and China, also it can perform odometer adjustment for some makes. Its nice features are built-in For Volkswagent 4th 5th adapter & RFID transponder reader / writer, program For Toyot/a/Lexus smart key all key lost via OBD and free For BM/W FEM key programming (for all keys lost, enter 32-bit ISN code). Lonsdor K518ISE is specialized on For Volv/o, For Masera/ti, For Ferra/ri,For Lamborgh/ini, For Bentl/ey, For Niss/an etc. Lonsdor K518ISE is free update online and no token limitation.
Lonsdor K518ISE Main Functions & Features:
Built-in For Volkswag/en 4th 5th adapter
Built-in Chip & remote detection module.
Lonsdor K518 Key Programmer Special Features:
For Volvvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
For Toyotta/Lexus: smart key all key lost – via OBD ( without dismantle)
For BMnW CAS3/CAS3+/CAS3++: direct OBD programming
For BMnW CAS4/CAS4+: dismantle & read data programming
16 -New Maser/ati: smart key programming
16 -New For/d: smart key programming
For Hyunddai / Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.
For Renauult ( Megane, Koleos, Scenic) without PIN code key programming
For VA/G group 4th & 5th immobilizer system
For Ferreri (458, F12, F149): direct OBD programming
For Peuge/ot /For Citro/en: two ways to read PIN code & programming, all keys lost included.
Lonsdor K518 Highlights:
1.The best car diagnostic tool based on Android
2.WIFI networking ensures software upgrading more convenient
3.No need to plug memory card,or connect the computer with data cable,more flexible in online upgrading,updating and activating.
4.With USB-B2.0 standard connector,OBD-II test cable integrated with the diagnostic connector function of the adapter.
5.Diagnostic speed greatly accelerated,work efficiency improved,better time saving.
6.7 inches high brightness,high definition color IPS capacitive screen
7.3800mAh prolymer battery
8.Support external memory expansion,better within 32G
9.Built-in professional,poerful operation assistant system
Lonsdor K518ISE Newest Update Info:
Free update 2017 For Bui/ck GL8 smart key programming
For Fiiat ottiimo toothless knoob key programming via OBD update time [Nov.15,2017]
Free update For Rol/ls-Roy/ce Wra/th,Gho/st Key Programming [Nov.10,2017]
Free update:2016-For/d Ku/ga 49 chip smart key programming Without PIN code[Nov.7,2017]
For BM/W FEM/BDC series key programming
CAS4 Enable/Disable Key
Free update for 2017 For/d Taur/us key programming by OBD without pin code (2017-10-19)
Free update for 2017-For/d New Mond/eo smart key programming (2017-10-18)
Free update BM/W FEM Key Programming. No need open authorization. No need token(2017-10)
Fi/at Ott/imo Yue Yue/Flying Che/ung smart key programming(2017-07-07)
Note: K518ISE is still under rapid upgrading, more functions will be released soon, please refer to official website , you can “One key update” for the latest version by yourself.
Lonsdor K518ISE can program For Toyo/ta/Lex/us smart key all key lost via OBD by working together with extra
SKE-LT: Smart Key emulator – For Toyota/Lexus smart key for all key lost via OBD.
Black: SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.
Lonsdor K518ISE Main Unit Appearance:
1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red – external power supply; blue – system power; yellow – communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to previous step
10. Built-in antenna: antenna inside
11. Model: K518ISE
Screen shot: press power button and volume down button together
K518ISE Top View:
1.Power socket 2.SD card slot
3.DB25 port 4.USB port
KPROG Adapter Appearance:
KPROG Adapter Front View:
2.Three-color indicator: Red:power light Blue:data light Yellow:comm status light
3.Simple horn seat:to connect with 20pin cable
KPROG Adapter UP View
RN-01 board:read & write CEM data
E-01 board:read & write EEPROM data
FS-01 board:read & write KVM data
20P cable:connect adapter with function accessories
*The 3 extra connector s are for Honda(3-pin), For Hyundai/Kia(10-pin) And for Kia(20 pin) respectively.
Lonsdor K518ISE Connection Picture:
Lonsdor K518ISE Main interface:
Lonsdor K518ISE Setting interface:
How to Use Lonsdor K518ISE?
Here take the For Toyo/ta/Lex/us smart key all key lost as example.
1.Go to the “Bind emulator key” function;
2.Turn on emulator key and put it into K518ISE key slot (put the status indicator down, make sure the key is active);
3.Following the system direction and click “OK” to start binding;
4.After binding completed, the system will indicate “Binding successful”.
Note: The KPROG adapter is specialized for part of Vol/vo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as for Jee/p Gra/nd Chero/kee, please refer to our website or directly go to the”One key update” for latest news.
2) Backup EEPROM data
Connect K518ISE with car OBD port, enter into “Backup immodata” to back up the data.
3) Make emergency emulator key
After choosing the immo data, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key and put it into K518ISE key slot(make sure the key is activate), follow the instruction to make an emulator key.
4) Add smart key
Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.
The system will read current key count, then follow the instruction to add key.
1.”Bind emulator key” can identify the SKE emulator key binding state;
2.SKE emulator key need to bind K518ISE host and can bind only for one time;
3.When making emulator key, make sure well net connection and to choose the corresponding SKE emulator key model correctly.
How to update Lonsdor K518ISE:
There are 3 ways to update the system,and after you connect the k518ise to the network,it will updated to the latest version automatically.
One key update:quickly update the new added or modified functions.
APK update:this is used when the APK is updated.
Force to update:this is used when the device is faulty or to retrieve data.
Londor K518ISE Adaptor Binding:
Please note that KPROG adapter must be bound to K518ISE before using, here is the binding process:
Step 1. Connect adapter to K518ISE with mainline
Step 2. Connect K518ISE with 12V power supply
Step 3. Enter into “Setting”
Step 4. Click “Bind adapter”
Step 5. Click “OK” to complete
Note: The KPROG adapter is specialized for part of Vol/vo car series and the new Maser/ati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Je/ep Grand Cherok/ee, please refer to our website or directly go to the”One key update” for latest news
How to Register Lonsdor K518ISE best key programmer?
After system updating, you need go to registration&activation.
For new user,
Click on Registration,
Input: user name(email), name(min 2 char), password(min 6 char), email verification code
Click on YES
Lonsdor K518ISE registration completes
(if interrupted after registration is done, you will go to the System update–Registered user to proceed).
Then go to Activation confirmation to continue.
How to ActivateLonsdor K518ISE car key programmer tool?
After confirming activation, it will go thepassword Setup interface
set 6-digit numbers as your startup password information verification by Lonsdor
(5-30 minutes, you can check the progress by clicking “Refresh” )
re-enter the password to verify
get the notification that verification successful
the whole process before using the device is complete.
The most important note:
1. User name must be workable email address, so that you can receive the verification codefrom Lonsdor by email.
2. Please pay attention to the difference between the registration password (min 6 char) and the startup password(6-digit), the former will generally only used when registration, so please commit the 6-digit startup password into memory, as this will be required every time when you start the device.
3. The account will be bound to the corresponding device for life, other accounts can not log in your device and your account can not log
in an registered or activated device either. 4. An account can be used to bind multiple new devices.
Lonsdor K518ISE Technical Parameter:
RFID: Support 125KHz ASK,134.2KHz FSK
CPU: ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display: 1024*600,7 inch IPS capacitive
Memory: eMMC 8G RAM 1G
Battery Capacity: 3800 mAh
Power Supply: DC12V 1A
Power port: 5.5×2.1mm
OBD Port: OBD-II
Comm Port: USB 2.0-type B
OBDII Protocols: ISO15765,ISO9141,ISO14230,SAEJ1850,VW TP1.6 TP2.0 etc
KPROG: Support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance: 10m
Lonsdor K518ISE Customers Reviews:
So far have tried on four vehicles, tried on a h system Toyo/ta failed completely to talk to car, tried on 2007 dodge ram would not talk to it either, tried on bm/w 2008 cas3++ would talk to car but canot read isn id.woks beutif on nisn prox. I also used it on 2018 bm/w x5 it lost keys it did talk to car givin key positions. car too new, no key available walked away.
Lonsodr K518 Programmer FAQs:
Q: Will it read pin code on US sold For Hyun/dai and ki/a smart system?
A: K518 can work on Hyun/dai and ki/a smart system with 47, 8A chip, for 46 chip, you have to collect the copy password firstly then to calculate the pin code.
Q:2017 For/d Escape smart key
A: 2017 For/d Escape smart key works on 49 chip.
Lonsdor K518 Customers Feedback:
For Niss/an prox works great.
2018 bm/w x5 lost keys it did talk to car giving key positions
Dodg/e RAM1500 and Journ/ey works
Mitsu/is/hi ASX 2013 – year add key works.
Ca/ill/ac ESCALA/DE 2017 smart key works
Works on a part of Va/g all keys lost 2010-, supports 4th Immo system 202AD key. In another words, as long as the 4th IMMO can be read out data successfully by 202AD.
– For Toyo/ta h system not work
– For bm/w 2008 cas3++ would talk to car but cannot read isn id.
1* Portable Bag(big)
1*OBD Test Cable
4pc x smart key emulator——————————————-Optional
