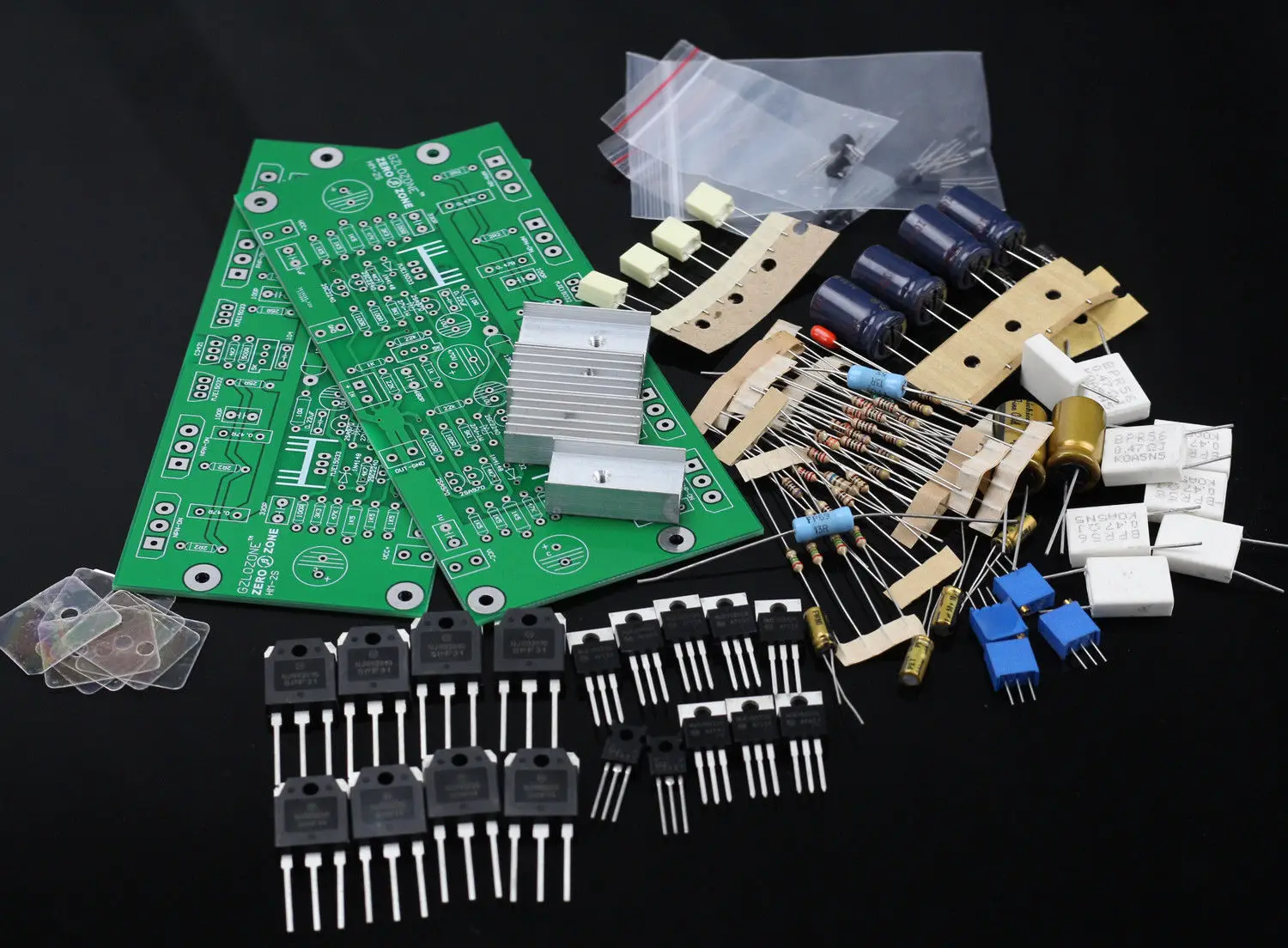

One pair HM2S-50W Class A Power amplifier kit base on KELL-KSA50 amp
Each PCB Size: 155*70*1.6MM (1OZ copper, FR4 grade A PCB material)
works voltage:+/-DC45V-55V (each channel transformer power recommend above 200VA)
Output Power :50W+50W (Class A)
23 times magnification
718 Military grade and DALE resistance, Nichicon feedback capacitor, Toshiba A970-C2240 tube (with the pole pairs, 1% accuracy) to promote the tube for the ON15032-33, Panasonic retreat capacitor, the power tubes are using Origianl ON NJW0281G/NJW0302G.
The default price is for 2 channel kit.all the parts will need yourself to soder it.
We can provide the PDF schematic via email
The following assembeld photo just for reference only!
