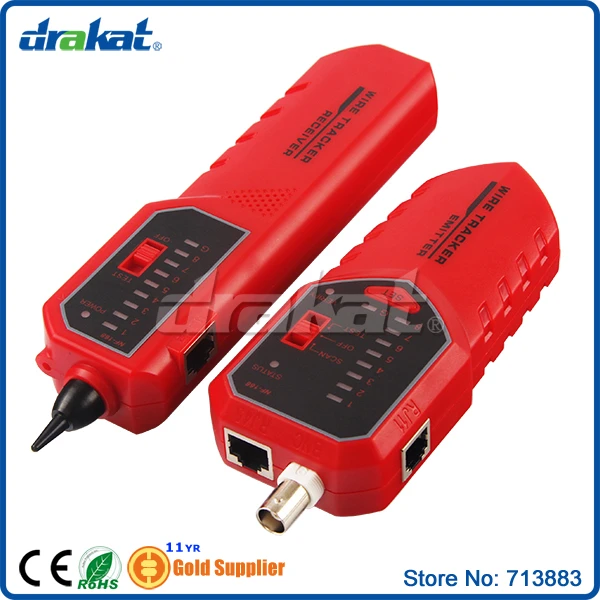

Sensitive Wire Tracker for UTP STP FTP RJ45 (8P4C, 8P8C), BNC and other cables under weak current situation
According to wide use of 8P4C cable, we develop the wire tracker NF-168 to test and track the cable of 8P4C with much more accuracy. It can test, find and locator the cable UTP STP RJ45 RJ11 BNC and other cable under weak current. It owns three great functions of hunting,wire sorting and circuit status testing and the features of quickness and accuracy, thus, it becomes available tool for technicians in installation and maintenance of weak current system, such as communication line, comprehensive wiring circuit, etc. It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.
1. Breaking the defect of the traditional wire locator for the poor anti-interference and loud noise. 2. Endurable high pressure and self-protection ability. 3. Lines can be hunted directly in connection with Ethernet switch/router/PC terminal/camera in startup status. 4. To find network /Telephone/BNC lines and other mental cables under weak current situation. 5. Locating the wire faults directly when connected with switch. 6. To sequence the Network line. 7. Earphone and backlight help you operate in dark. 8. Low voltage indication. Package including: 1* Launcher 1* Receiver 1* Cable with crocodile clamp 1* RJ11 cable 1* RJ45 cable 1* Earphone 1* Instruction manual
|Product Name||Wire tracker|
|Supplier||Drakat IT Store|
|Main Function||Tracing and testing cable|
|Tracking Type||UTP/STP/FTP RJ45 (8P4C 8P8C) RJ11 BNC|
|Testing Type||Shield and unshiled RJ45 (8P4C 8P8C) RJ11 BNC|
|Other Function||LED Flash and Loud Speaker|
|Power||9V Alkaline Battery|
|The max working current||Emitter||<2mA|
|Signal transmission format||Muti-frequency impulse|
|Signal output electric status||8Vp-p|
|Distance of signal transmission||>3km|
|Appearance dimension||Emitter||146 x 57 x 30 mm|
|Receiver||187 x 46 x 27 mm|
|Whole Set||285 x 150 x 46 mm|
|Whole Set||0.371kg(with inner box)|
The showed battery is not in package!
