The Wireless switch Relay can Universal used many Home or Industry in Circuit ,and Electronic product ,like TV,Lights,Lamp,Fans,LED,Computer,socket,Window,Door,Motor, Car… and other 110/220V Power.. it can used for 110/220V Relay Module…..
Operating Voltage: DC 12V
Operating Current: 30MA
Frequency Distance: 50 meter(open/ideal) in theory, 15%-50% in reality(In open environment,receiver antenna outside the box)
Encode: Fixed code, Soldering
Decode: Learning code
Working Voltage: AC110V/ 220V (180V-240V)
Output way: Self-lock defaults ,(other model can change by yourself)
Maximum Load Current: 10A
Rated load:10A 220/110V
Receiver Sensitivity: -105dBm
Working temperature : -40\’C – +80\’C
Size : 55*30*18mm
The Work model can change in the switch board work pin.(1.Jog/momentray:All Model-pin not connector. 2.Self -lock/Self-Latched: Model (pin1+Pin 2) Connector Or (Pin2+pin 3) connector.3 Inter-lock /Latched:(Pin2+pin 3) Or (Pin1+Pin2) Connector)
1. Jog/momentray: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Add remote control method
1 Connector the switch to 110/220V..
2 press the switch board learn button (1-3 second),till the switch LED lighting..
3 after press the remote control button, till the switch LED lighting.. the relay will be ON or OFF.
4 test the controller control the switch.. press the control button, the relay will be on and off.. you can hear it.
Remove Remote control:
1 Connector the switch to 110/220V ..
2 Press the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.The remote controller can not control the switch relay.

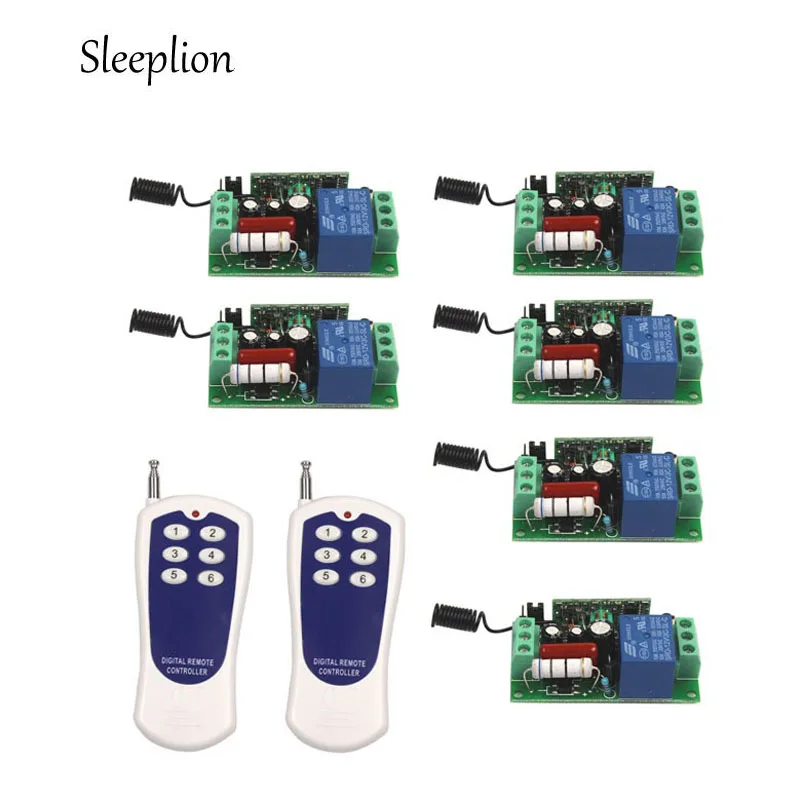

6 x Receiver switch
2 x wireless remote Transmitter (Battery include)
