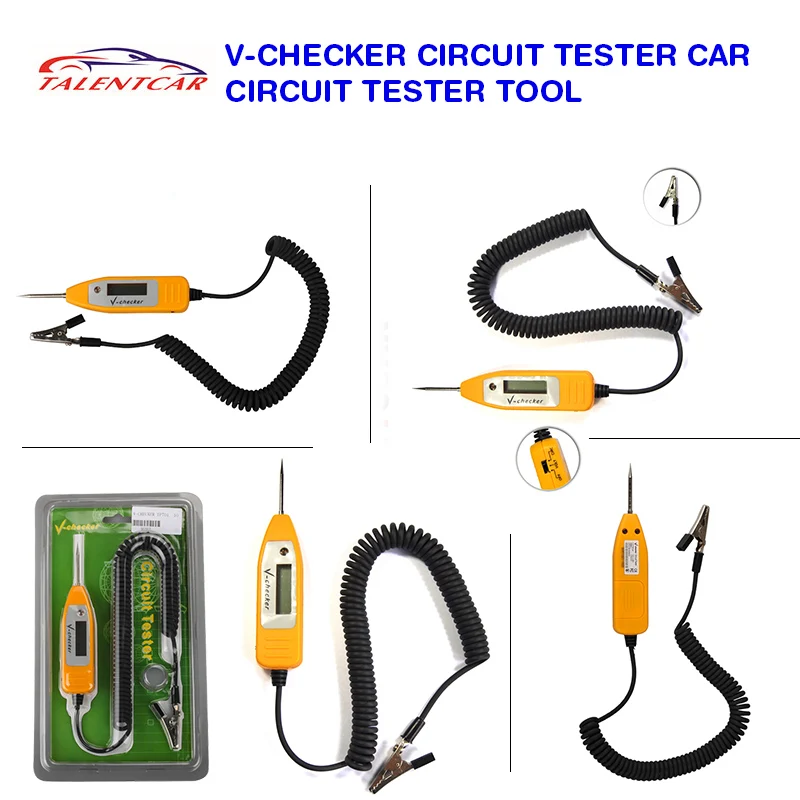

super V checker Circuit Tester code scanner
Click to see details
super V checker Circuit Tester code scanner
HTB1fMY8QVXXXXbIXFXXq6xXFXXXu
HTB1gIP1QVXXXXcDXFXXq6xXFXXX4
HTB10_QaQVXXXXb
HTB12EHPQVXXXXXxaXXXq6xXFXXXp
HTB1P3f0QVXXXXaNXVXXq6xXFXXX4
HTB1_Ul9IXXXXXc4XpXXq6xXFXXXU
HTB1_KyjIXXXXXc4XXXXq6xXFXXXx
HTB14JKeIXXXXXX2XpXXq6xXFXXXF

super V-checker Circuit Tester code scanner

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $71.02 / lot
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

super V-checker Circuit Tester code scanner

V-checker Circuit Tester can check signal for cable assembly from 0-36V, with accuracy 0.1V. It can check continuity of cable assembly. Display the ON and OFF figure. LED is ON when the cable is continuous; LED is OFF when discontinuous.

V-checker Circuit Tester VS Similar Products in the Market

Similar Products

V-checker Circuit Tester

Appearance

Poor surface

Smart design, fine surface

Display

LED lamp or Neon lamp

128*32 LCD screen, two-color LED

Function

Can only check signal in the auto cable assembly: Signal Voltage>5V, LED ON; Signal Voltage<5V, LED OFF

&#8226; Check signal for cable assembly from 0-36V, with accuracy 0.1V.
&#8226; Display ” >>” when voltage exceed 36V.
&#8226; Display value and waveform at the same time when the voltage is over 0.1V. When the voltage is over 0.5V, the blue LED light on at the same time.
&#8226; Auto waveform freezing.
&#8226; Check continuity of cable assembly. Display the ON and OFF figure. LED is ON when the cable is continuous; LED is OFF when discontinuous.

Battery

no

Need a CR2032 button battery. It can work for over one year.

Switch

no

&#8226; OFF: turn off the power
&#8226; VOLT: view voltage and its waveform
&#8226; CIRC: check circuit continuity
Please switch it off if dont use it.

Specifications
&#8226; voltage: 0-36V
&#8226; waveform: 0-5V, 2s
&#8226; cable length: 2.7m
&#8226; battery:3V CR2032
&#8226; digital voltage display accuracy: 5%
&#8226; continuity test: available
&#8226; LED indicator: green and blue
&#8226; low consumption design: CR2032 button battery, which can work for over one year
&#8226; Auto turn off
&#8226; Auto freeze of waveform
&#8226; Over voltage protection
&#8226; With clamp and probe, special designed for auto diagnosis and service

Packaging

Outline of product:150mm × 255mm × 18mm
Weight of one product:0.12kg
Box:528mm × 477mm × 320mm
Quantity:100pcs/ Box
Weight of one packaging for delivery:12kg
